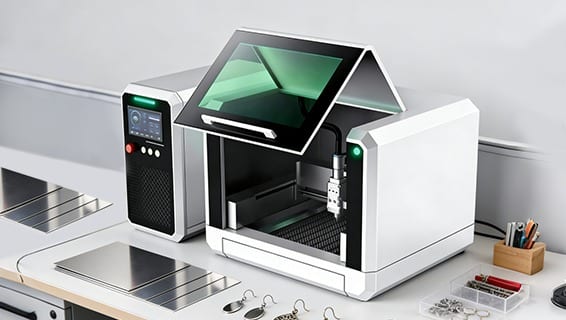

Reticle SFC3030 & SFC5050 Fiber Cutters
Reticle Machines desktop fiber cutters: 300×300 mm stepper models in 800W/1200W and a 500×500 mm 1200W servo model. Posted prices and formal quotes.
Capabilities & Feature Set
- Bring rapid metal prototyping in-house — cut brackets, plates and enclosures on your own bench.
- Precision jewelry cutting: filigree, blanks and settings in brass, silver-grade stock and titanium.
- SFC3030: 300×300 mm working area with stepper motors, from $6,840 USD.
- SFC5050: 500×500 mm working area, 1200W source and servo motors at $9,360 USD.
- Posted Reticle Red prices with formal destination-specific quotes for manufacturer fulfillment.
A production-first workflow
Reticle SFC3030 & SFC5050 Fiber Cutters is designed around the full laser job, not a disconnected preview. Start with the best available source artwork, set the real material and machine constraints, inspect small details at output size, and export the format your control software expects. Before using an expensive blank or finished part, verify dimensions, focus, layer assignments, and power settings on comparable scrap. Save the successful result with the job notes so repeat orders begin from a proven setup.
Open Reticle SFC3030 & SFC5050 Fiber Cutters — Free to Start See Real Results →
Frequently Asked Questions
Do I need an air compressor?
Yes — the SFC3030 cuts with compressed air as its assist gas, so plan on a compressed-air line alongside its 220 V single-phase supply (voltage options are available — ask in your quote). It is air-cooled, so there is no chiller or water plumbing to install.
800W or 1200W — which tier should I quote?
The 800W tier cuts up to 2 mm stainless, 1.5 mm aluminum and 1 mm brass; the 1200W tier extends that to 3 mm stainless, 2.5 mm aluminum and 1.5 mm brass, with faster throughput in the same stock. If your material sits near the 800W limits, quote both tiers and tell us what you cut — the delta is worth comparing before you decide.
What changes on the 500 × 500 mm cutter?
The SFC5050 uses the same 1200W cutting specification as the 300 × 300 mm SFC3030, but expands the working area to 500 × 500 mm and upgrades the motion system from stepper motors to servo motors. Its larger enclosure ships at approximately 1160 × 1000 × 1170 mm and 225 kg gross.
How does ordering and payment work?
The posted prices are preliminary U.S. DDP list prices, not online checkout offers. A U.S. request receives the current price sheet automatically; we still confirm the exact configuration, ship-to address, freight scope, lead time and order terms before payment. Orders outside the United States require a separate Reticle Red quote with manufacturer input. Lead time is about 20 working days plus shipping, and the machine carries a 1-year warranty with lifetime technical support.
