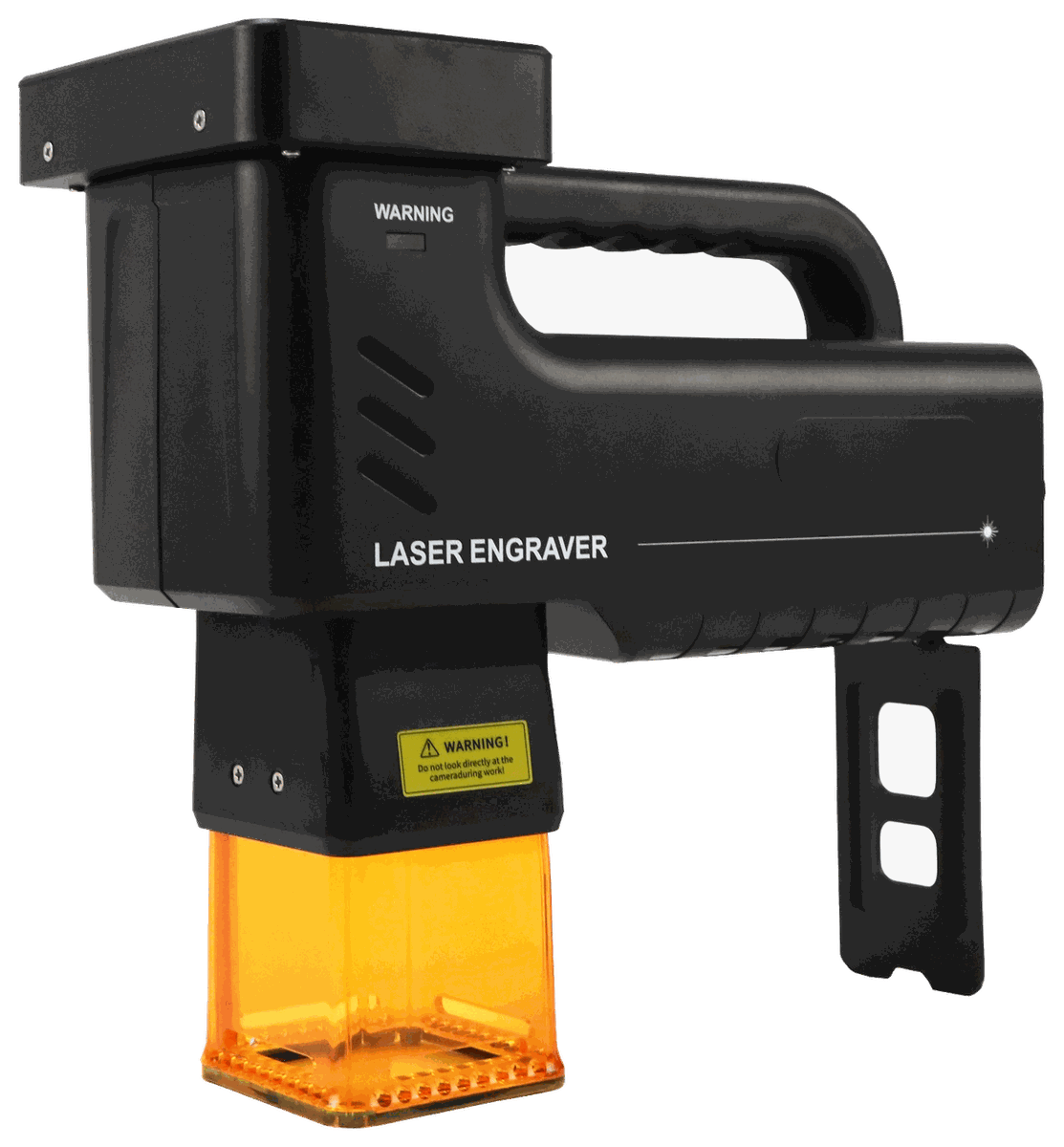

Reticle Machines Dual-Laser Marker — Fiber + Blue
A battery-powered handheld laser marker with two sources — 1064 nm fiber for metals & ceramics and 455 nm blue for wood, leather & plastics. 55×55 mm field, 3.2" touchscreen, no PC. Specs & quote.
Capabilities & Feature Set
- Two sources in one handheld: 1064 nm fiber plus 455 nm blue diode.
- Marks metals and ceramics, engraves wood, leather, and plastics.
- Battery-powered with a 3.2-inch touchscreen — no PC required in the field.
Open Reticle Machines Dual-Laser Marker — Free to Start See Real Results →
Frequently Asked Questions
Does it need a computer or a software subscription?
No. The built-in 3.2-inch touchscreen runs the marker’s own software with free lifetime updates — import a file over Type-C or USB, focus with the guide light, and mark. It also syncs with your phone or PC when you would rather design on a bigger screen.
When does the fiber laser fire versus the blue diode?
You choose the source in software: the 1064 nm fiber laser handles metals, coated metals and ceramics, while the 455 nm blue diode marks wood, bamboo, leather and dark plastics. Both share the same 55 × 55 mm field, focus and screen, so switching materials never means switching machines.
Is it only handheld, or can it work on a desk too?
Both. It weighs 2.7 kg with a pistol grip for handheld work, and a fold-down rear stand converts it into a small desktop marker. Power comes from the internal lithium battery or a DC 20 V supply (a dedicated power bank is supported), drawing under 90 W.
