Fitted Scrollwork Engraving Workflow Example

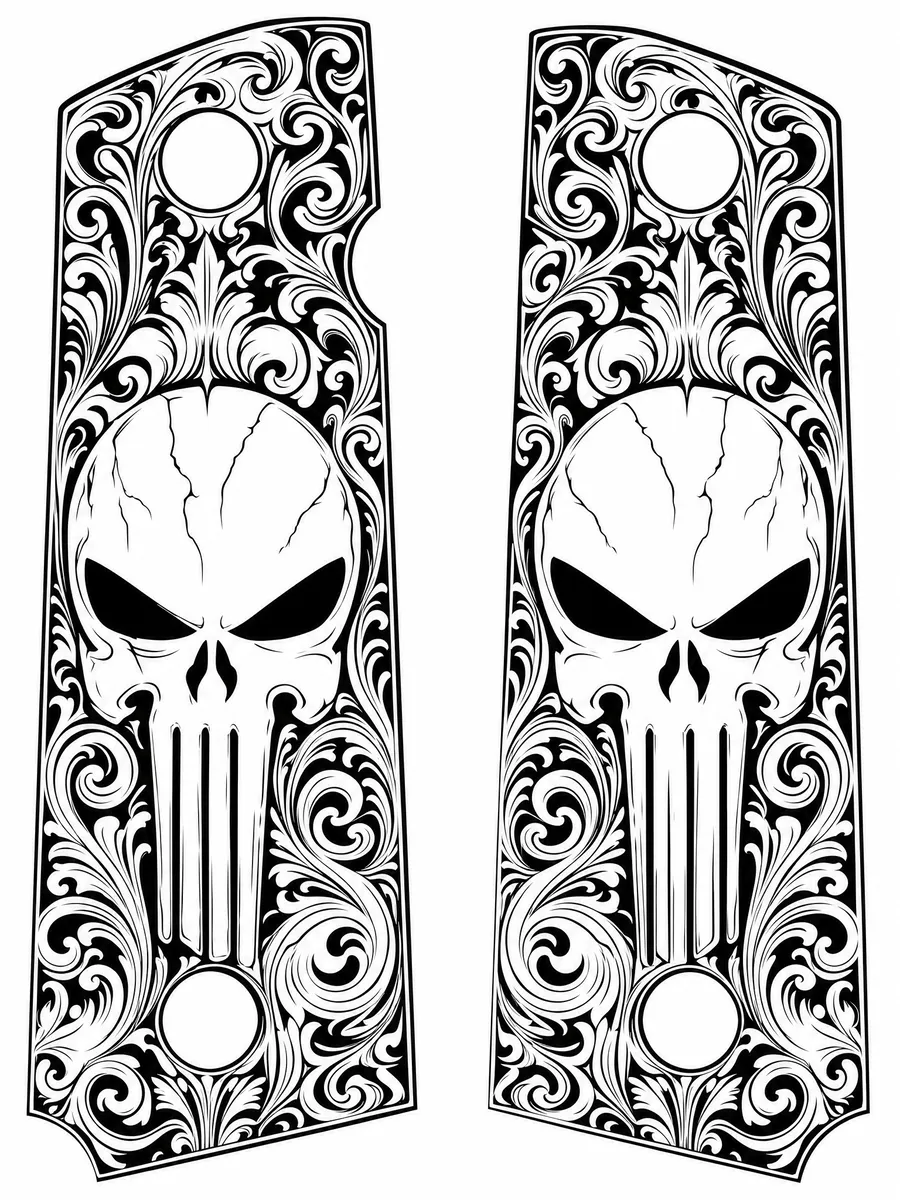

A Reticle Red-owned workflow example showing decorative scrollwork constrained to fitted grip-shaped panels. It demonstrates the design process without claiming a customer result.
Specifications and context
- Tool
- The Fabricator
- Job path
- Shape to fitted decorative fill
- Output
- High-contrast production artwork
- Proof status
- Reticle Red workflow example
Production guidance
Use these parameters as a documented starting point, not a universal prescription. Material batches, optics, focus, air assist, source age, and machine calibration all affect the finished result. Confirm focus, protect the work area, and run a small test on matching scrap before committing a production piece. Record the date, material supplier, lens, focus method, and final parameter changes with the saved job so the result can be reproduced instead of rediscovered.
- 1. Trace the actual part boundary and preserve holes and hardware clearances.
- 2. Generate inside the mask, inspect negative space, and test on matching scrap before the finished part.
