Free Layer Registration Target SVG

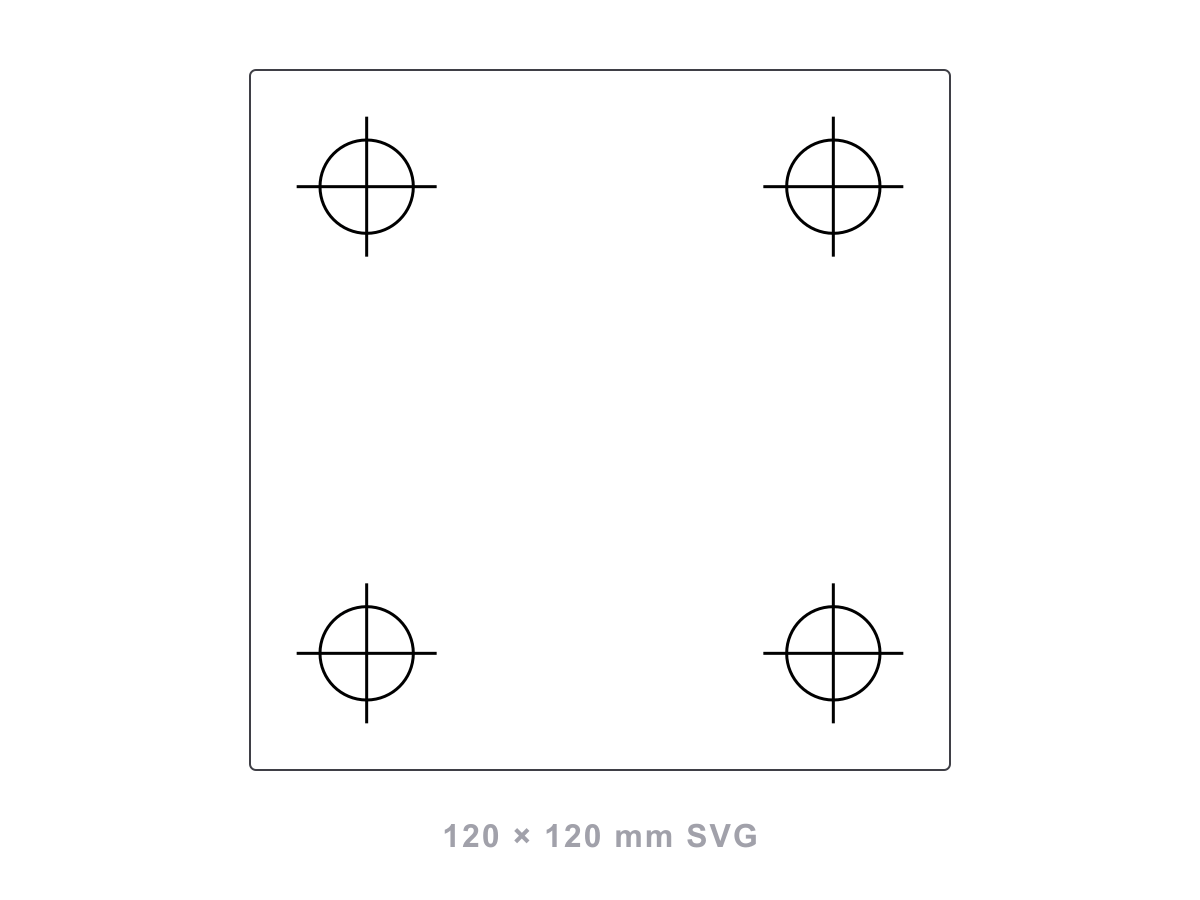

A compact set of crosshair and corner targets for checking alignment between material layers or repeated operations. Duplicate the marks where your job needs them.
Free Layer Registration Target SVG: specifications and context
- Format
- SVG, 120 x 120 mm
- Price
- Free
- Use
- Layer and pass alignment
- Geometry
- Crosshair and corner targets
Production guidance for Free Layer Registration Target SVG
This downloadable SVG is geometry, not a machine recipe. Import it at the intended physical size, inspect every layer and open path, then assign speed, power, and passes in your own control software for the actual material.
- 1. Place targets outside the finished artwork but inside the usable stock.
- 2. Run the registration sequence on scrap before a multi-layer production job.
Free Layer Registration Target SVG should be opened at its stated physical size before any layer receives machine settings. Preserve the source file, save a machine-specific working copy, and record the final material, focus, kerf, speed, power, and pass choices beside that copy so the next run can be audited.
