Free Material Test Grid SVG

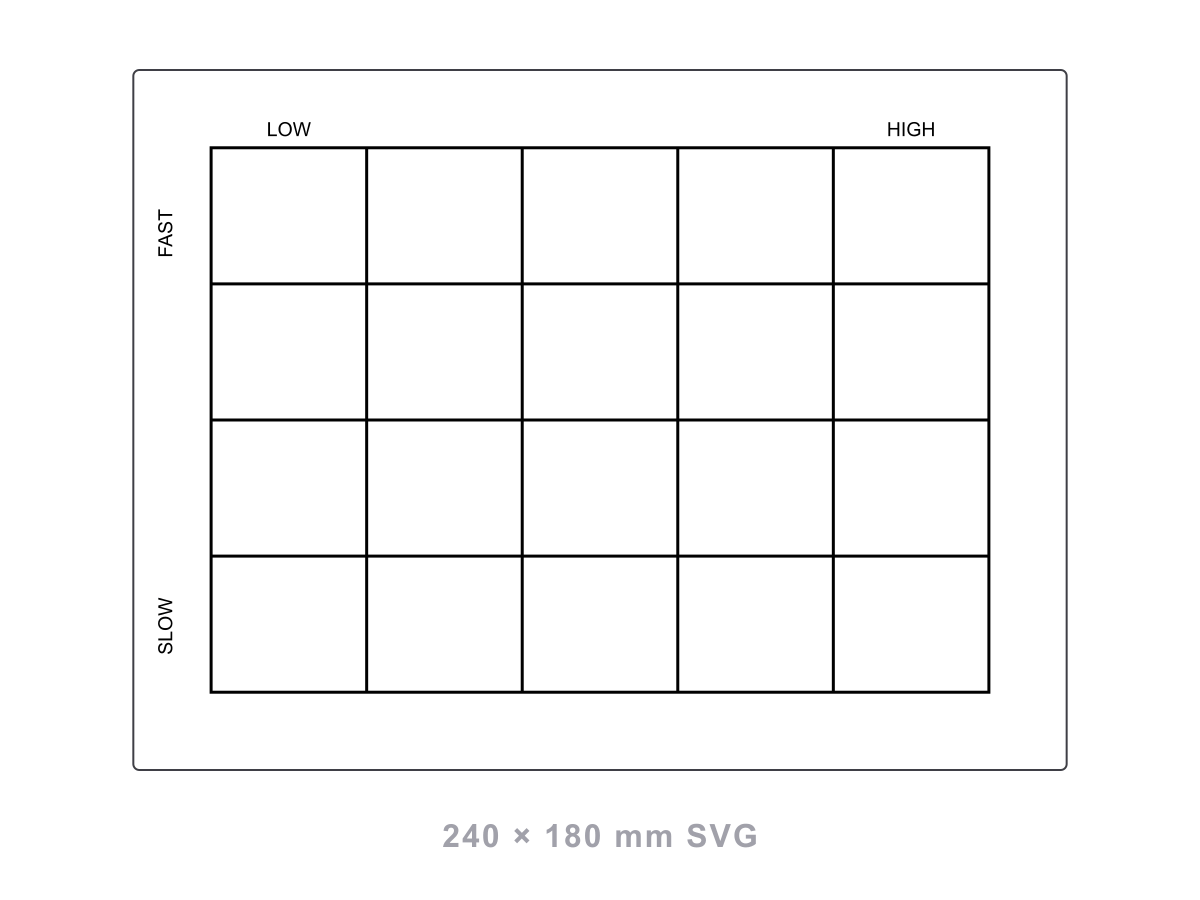

A free starter SVG for organizing power and speed tests. Labels are intentionally generic: set the actual parameters in your laser software and verify every test on scrap.
Free Material Test Grid SVG: specifications and context
- Format
- SVG, 240 x 180 mm
- Price
- Free
- Use
- Power and speed testing
- Software
- LightBurn, XCS, or compatible vector software
Production guidance for Free Material Test Grid SVG
This downloadable SVG is geometry, not a machine recipe. Import it at the intended physical size, inspect every layer and open path, then assign speed, power, and passes in your own control software for the actual material.
- 1. Import the SVG and assign each cell a controlled parameter pair.
- 2. Use the same material, focus, air assist, and lens planned for production.
Free Material Test Grid SVG should be opened at its stated physical size before any layer receives machine settings. Preserve the source file, save a machine-specific working copy, and record the final material, focus, kerf, speed, power, and pass choices beside that copy so the next run can be audited.
