Free Laser-Cut Jigsaw Puzzle Generator

Create custom laser-cut jigsaw puzzles from any image. Generate interlocking puzzle SVG cut files for wood, acrylic, and MDF. Any size, any piece count.

How do you make a laser-cut jigsaw puzzle from a photo?

Pick a piece count in the Puzzle Generator (quick presets run from 4 to 99 pieces, or set columns and rows), set the finished size and tab shape, and it draws interlocking cut lines with randomized knobs. Optionally drop in your photo to preview it under the cuts, then engrave the image and cut the pieces from 3 mm plywood, MDF or acrylic. The generator is free and runs in your browser.

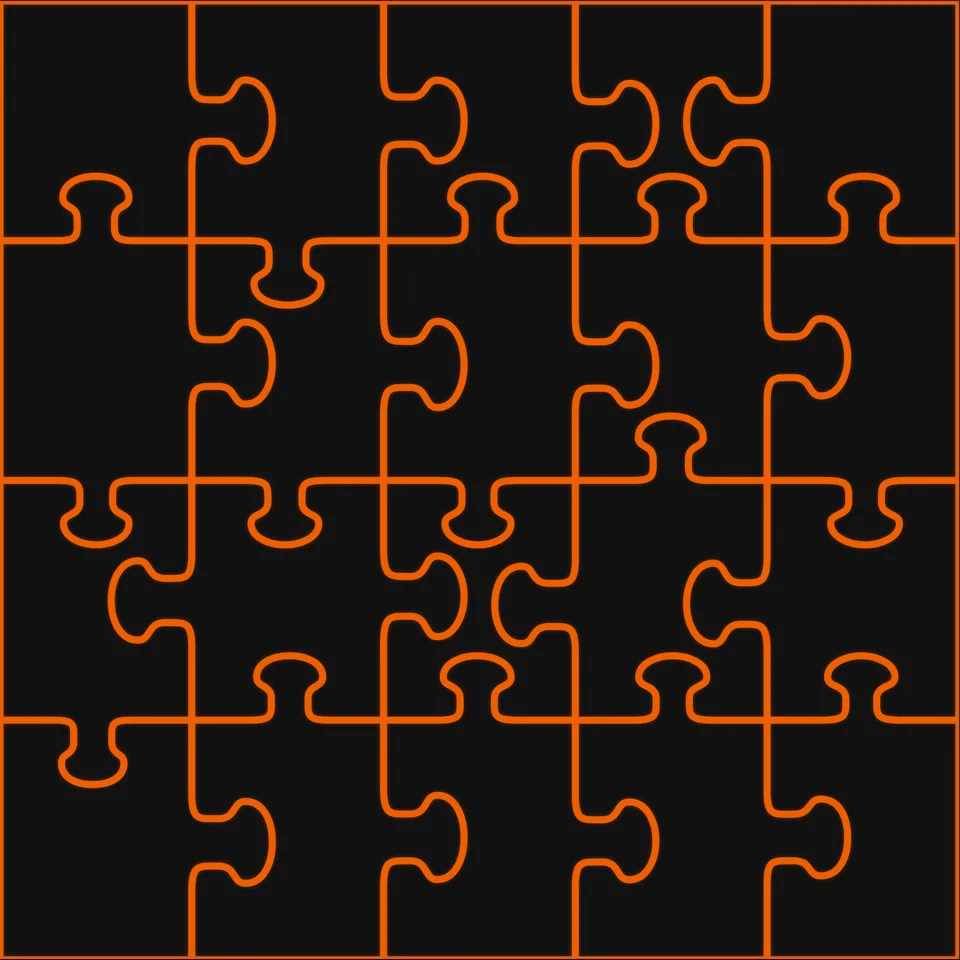

Puzzle Generator output: interlocking cut lines for a 20-piece (5 by 4) laser-cut jigsaw puzzle with randomized knobs

Puzzle Generator at a glance: inputs, outputs, limits and cost

Input	Piece count (columns and rows), finished size, tab size and roundness; a photo is optional and previews under the cut lines
Output	Interlocking cut lines with randomized knob shapes, as LightBurn .lbrn2 or SVG
Materials	3 mm plywood and MDF cut cleanly; acrylic works too. The file is a single shared centre-line cut, so there is no kerf setting
Cost	Free, no account or credits
Limits	Up to 16 × 16 pieces on boards from 50 to 1000 mm; higher-resolution images hold detail better on larger boards

What does the Puzzle Generator cut?

Interlocking pieces from 4 up to 256 (16 × 16), on boards from 50 to 1000 mm.
Randomized knob shapes so no two pieces cut identical.
Exports LightBurn .lbrn2 and SVG cut lines for wood, acrylic, and MDF.
Free — runs entirely in your browser.

Open Free Laser-Cut Jigsaw Puzzle Generator — Free to Start See Real Results →

Related Tools & Guides

Field Manual: Puzzle Generator →Box Maker →Wood Settings Cheat Sheet →Free DXF Files for Laser →Cuttle alternative →Schools and makerspaces →

Frequently Asked Questions

Is the Puzzle Generator free?

Yes — completely free, in your browser, with no account or credits required.

Can I use any photo to make a puzzle?

Yes. Upload any image; the piece grid and knob shapes generate over it automatically. Higher-resolution source images hold detail better on larger boards.

How many pieces can I generate?

Set your own board size and piece count — from a simple 4-piece puzzle up to 16 × 16 (256 pieces), on boards from 50 to 1000 mm.

What material works best?

3mm plywood or MDF cut cleanly and hold interlocking knobs well; acrylic works too. Pieces share one centre-line cut, so test the fit on scrap before a full board.
